Descripción
ESPECIFICACIONES TÉCNICAS:
-
Cuadro
Series 2 Fitness, E-Bike Specific, Aluminio 6061, Ruedas 700c, específicos de disco, Fitness Geometry, Montura para porta paquetes, y tapabarros
-
Horquilla
Aluminio 6061, Montura para disco, Ojales para tapabarro y portapaquetes
-
Llantas
Marin aluminio doble pared
-
Maza trasera
Bafang 250 Watt Hub Motor, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world
-
Maza delantera
Forged Aluminum Alloy, 32H
-
Rayos
Acero inxodable 14gs
-
Neumáticos
Vee Tire, City Cruz, 700Cx40mm, Protección contra las pinchadures, Costado reflectante, alambre.
-
Desviador trasero
Shimano Acera, 8-Speed, Wide Range
-
Desviador delantero
-
-
Manetas de cambio
Shimano Altus 8-Speed RapidFire
-
Volante bielas
Alloy Crank, Steel 42T Chainring, Ring Guard
-
Eje Motor
Integrated Torque Sensing, Rodamientos sellados, Eje punta cuadrada
-
cadena
KMC X8
-
Piñón
Shimano HG-400, 8-Speed, 11-40T
-
Freno delantero
Tektro HDM-275 Hidráulico de disco, rotor de 160mm
-
Freno trasero
Tektro HDM-275 Hidráulico de disco, rotor de 160mm
-
Manetas de freno
Tektro Hidráulico
-
Manubrio
Marin aleación, tipo Flat
-
Tee Potencia
Aleación, Marin
-
Puños
Marin County
-
Juego de dirección
FSA, Orbit CE No.8B
-
Tubo de sillín
Marin Alloy, 27.2mm
-
Sillín
Marin Fitness
-
Pedales
Marin Oso OEM Nylon - de plataforma
-
Batería
Bafang 340Wh, 36V, In-tube
-
Control
Bafang Handlebar Mount LED Switch & Display
-
Pata de apoyo
Alloy Rear-Mount
-
Rango y tiempo de carga
19-62 Miles/25-100km (Teniendo en cuenta peso del ciclista, terreno, clima y el nivel de asistencia utilizado)- 6 Hours
Las especificaciones, precios y disponibilidad están sujetos a cambios sin previo aviso.
GEOMETRÍA:
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 571.3 | 590.1 | 609 | 637.3 |
| Reach | 399.5 | 420 | 440 | 455 |
| Ángulo del tubo de dirección | 70.5° | 70.5° | 70.5° | 70.5° |
| Logitud del tubo de dirección | 155 | 175 | 195 | 225 |
| Ángulo del tubo de la silla | 73.5° | 73.5° | 73.5° | 73.5° |
| Longitud del tubo de la silla | 430 | 480 | 520 | 550 |
| Tubo superior effectivo | 569 | 595 | 620 | 644 |
| 283.5 | 283.5 | 283.5 | 283.5 | |
| Eje motor drop | 70 | 70 | 70 | 70 |
| Chain Stay | 445 | 445 | 445 | 445 |
| Distancia entre ejes | 1070 | 1097 | 1123 | 1148 |
| Altura | 705.9 | 745.2 | 779.9 | 808.9 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Diametro del tubo de asiento | 27.2 | 27.2 | 27.2 | 27.2 |
| Ancho de manubrio | 640 | 680 | 680 | 680 |
| Largo del Stem | 70 | 70 | 70 | 70 |
| Largo de la biela | 170 | 170 | 170 | 170 |
Todas las medidas en milímetros
SERIES 2 FRAME
The Series 2 ebike fitness frame features 6061 aluminum tubing with an internal battery and internal cable routing, forged dropouts with rack and fender mounts and an integrated kickstand mount.
ELECTRIC DRIVETRAIN

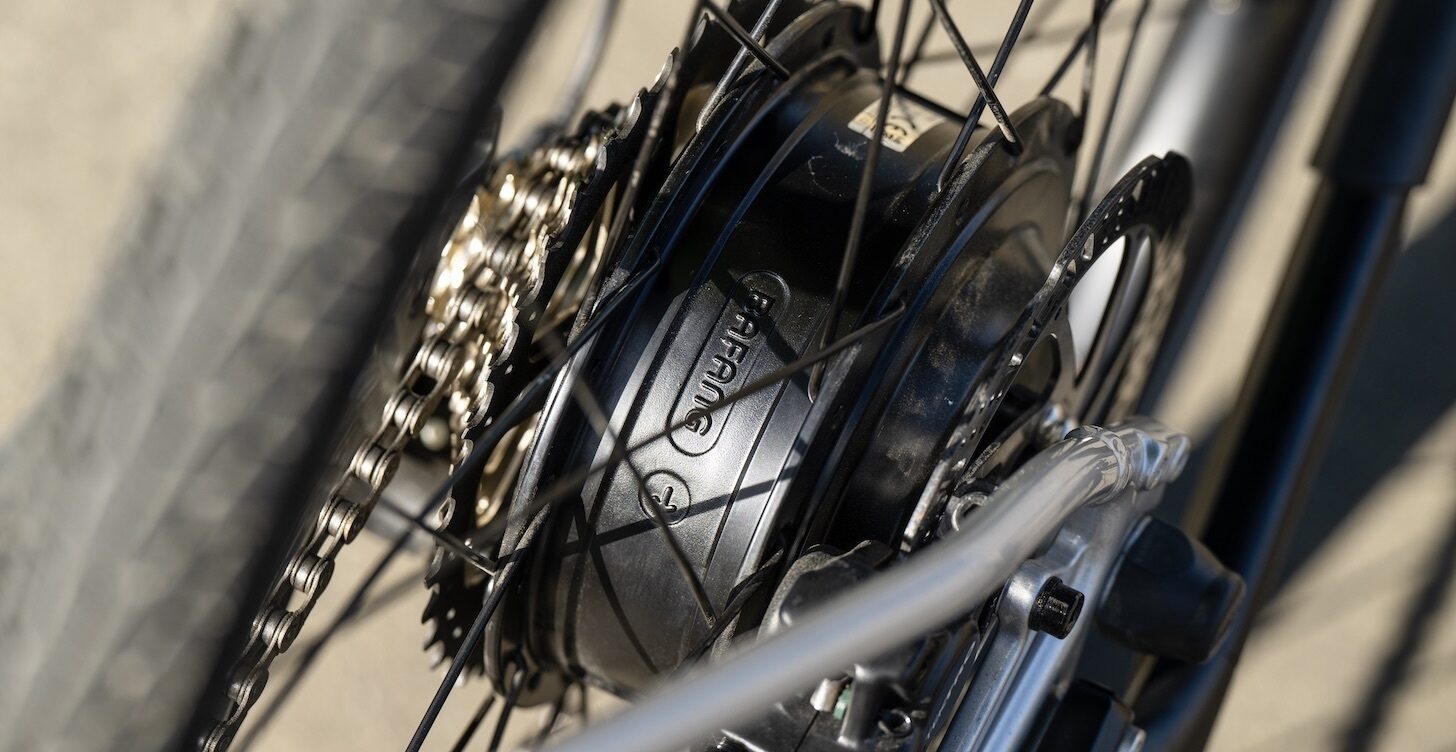

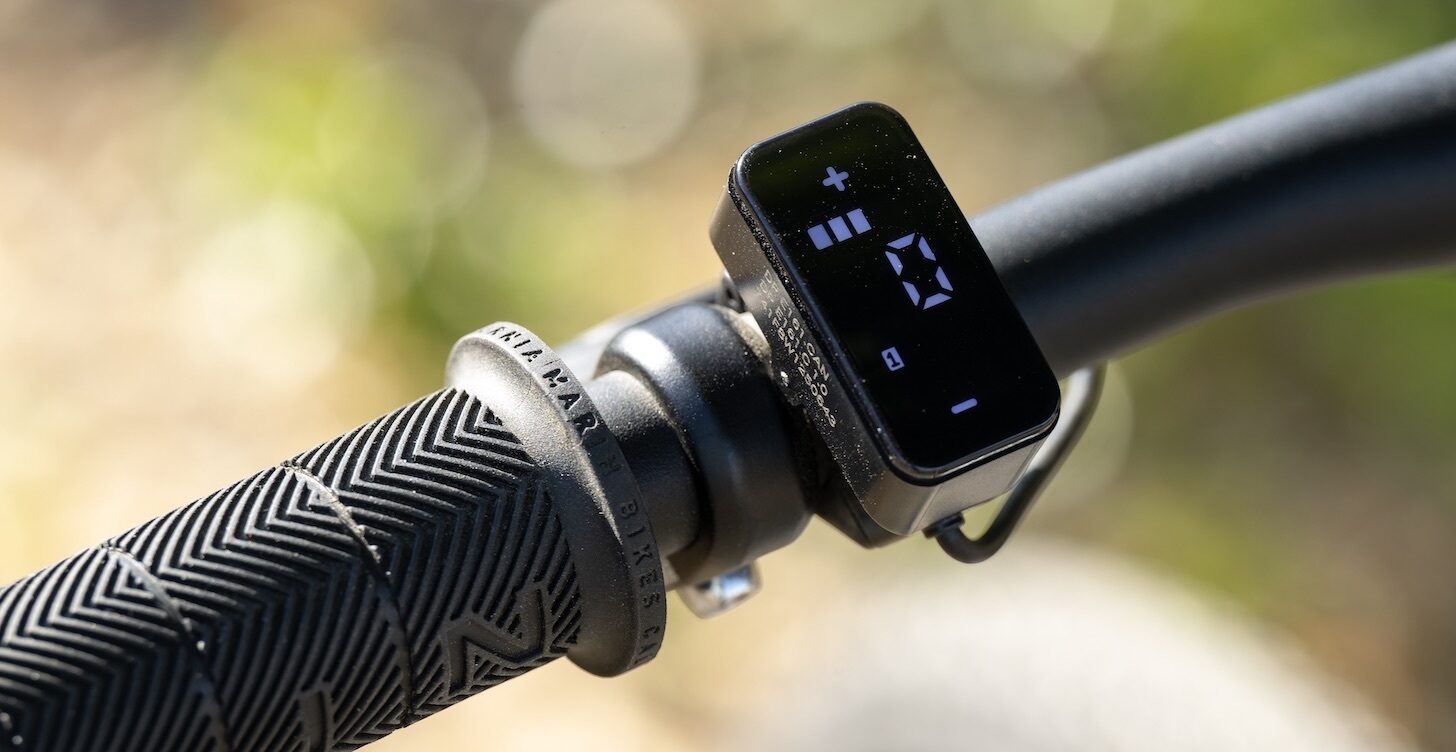

The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed and assist level selected.
INTERNAL BATTERY

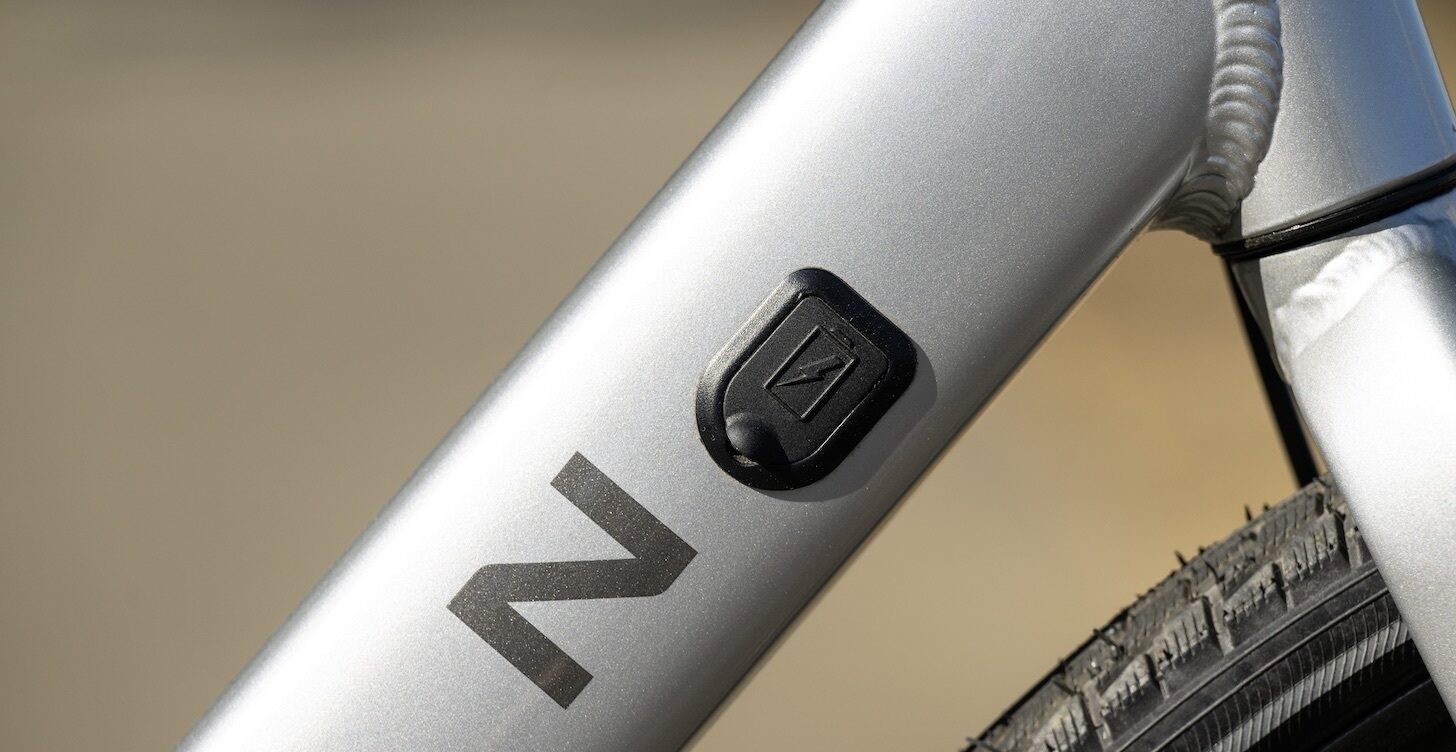

The 340Wh in-tube battery is neatly integrated into the Fairfax E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.
HYDRAULIC DISC BRAKES

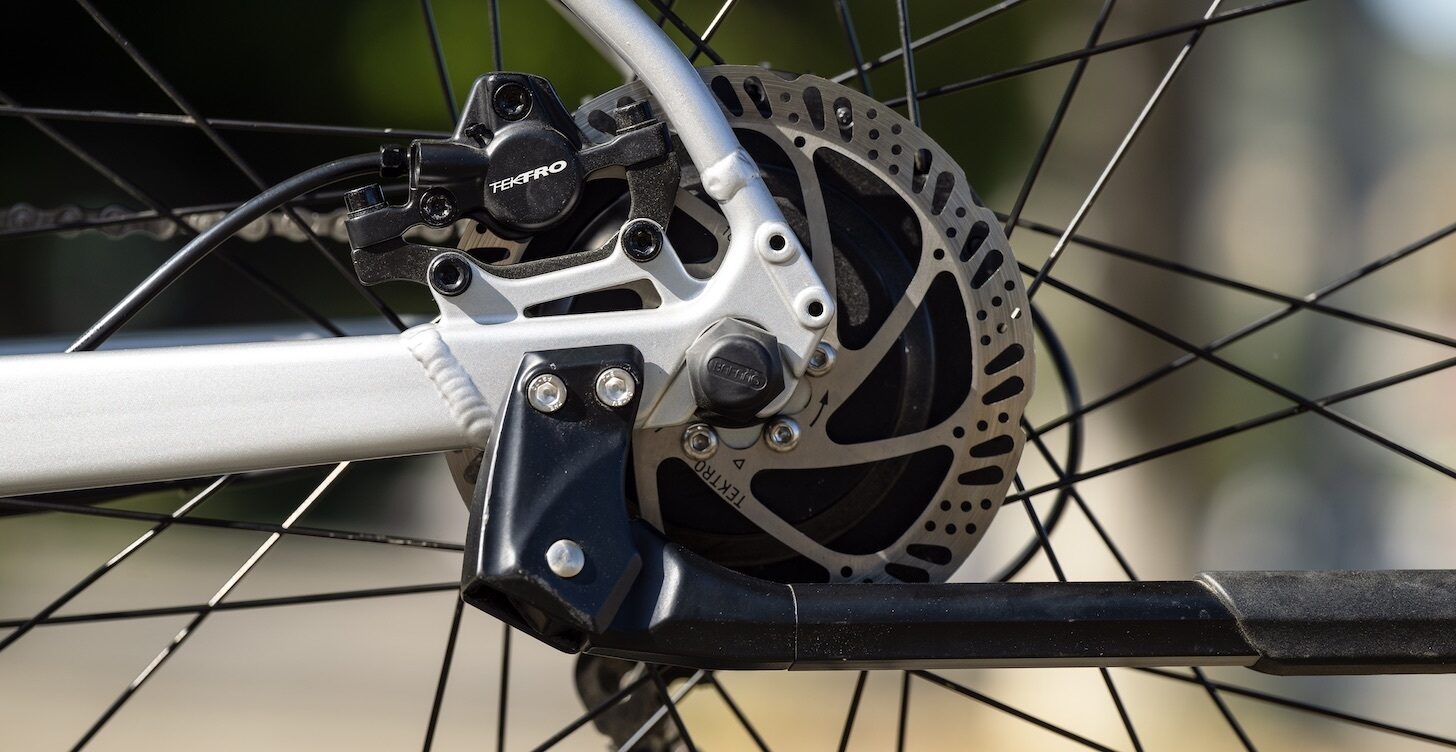

Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
STEP THROUGH DESIGN
The Fairfax E ST features a step-through frame design with a lowered toptube for easier mounting and dismounting.
SHIMANO DRIVETRAIN
Shimano's stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing.
