Descripción
ESPECIFICACIONES TÉCNICAS

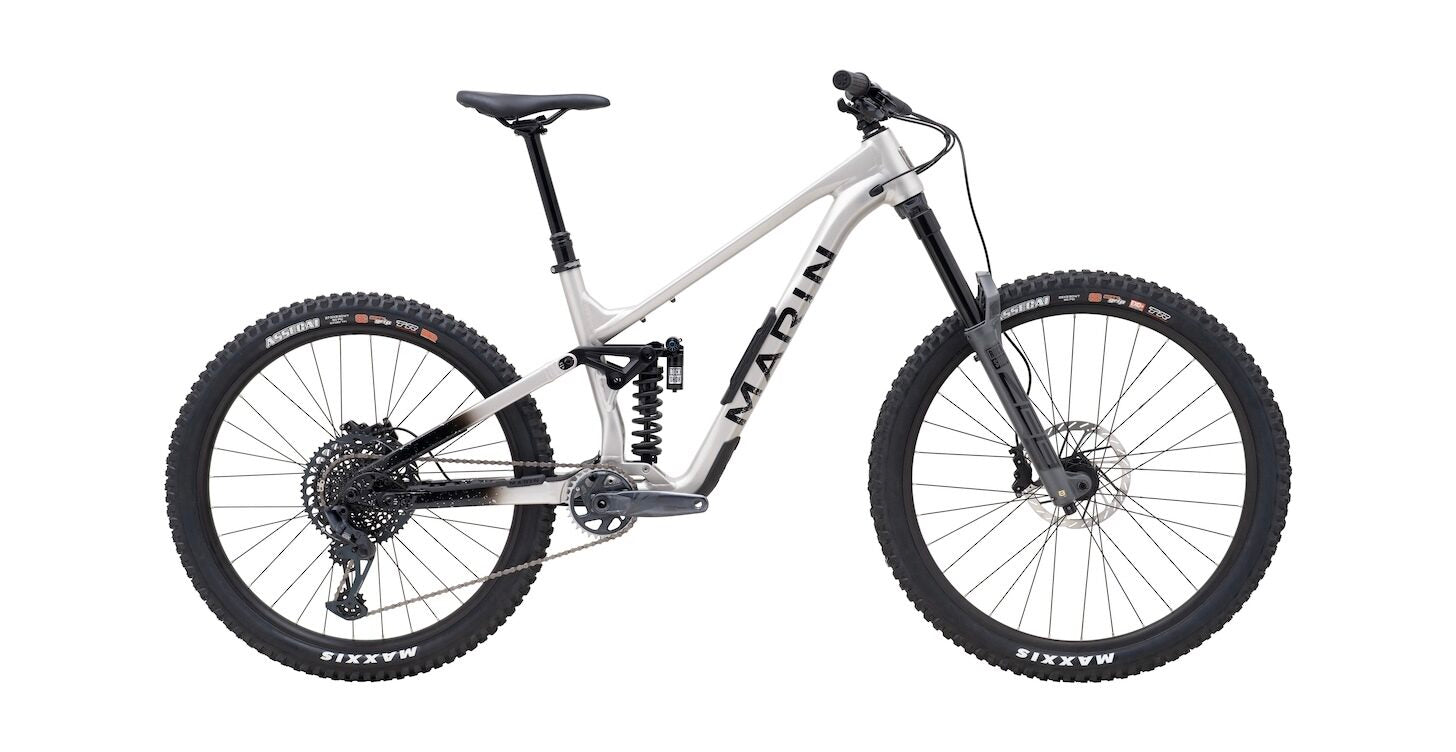

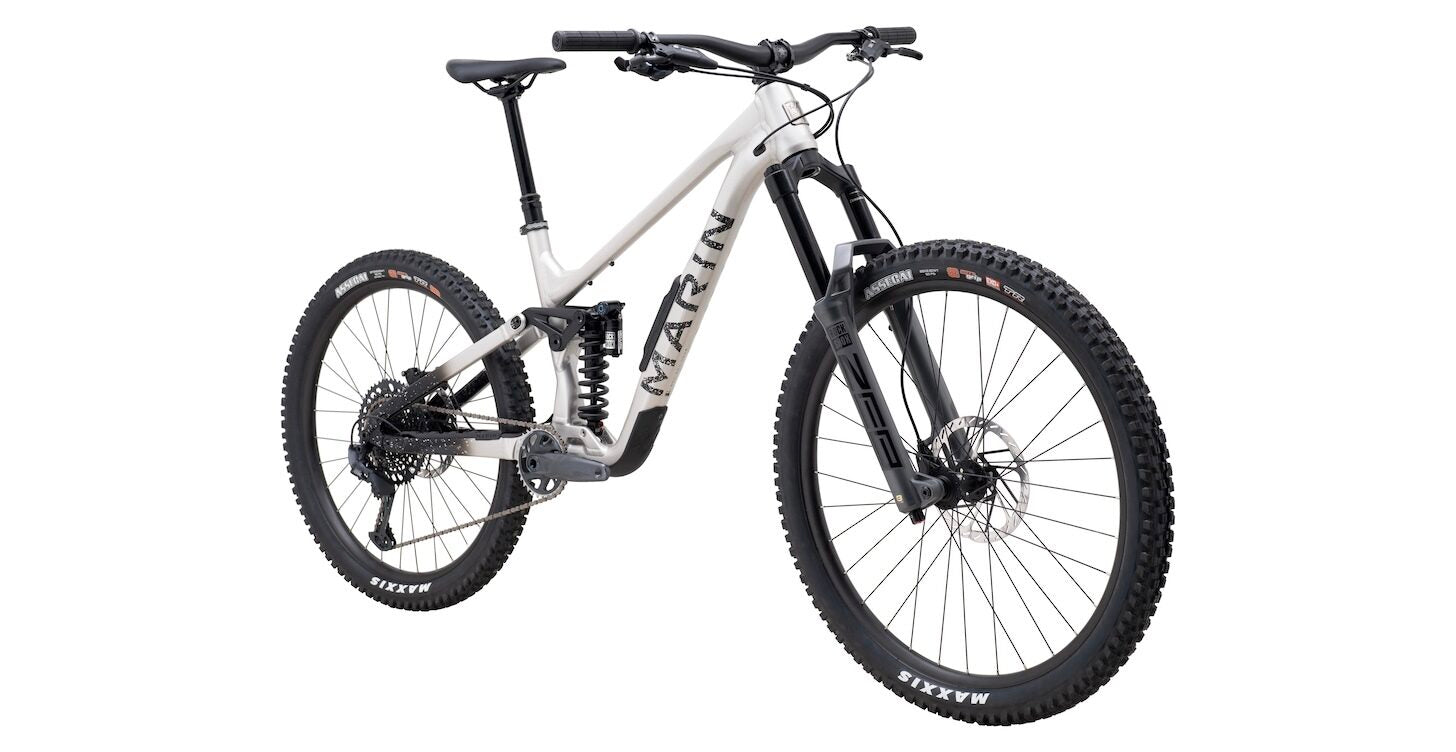

- Cuadro: Aluminio 6061 Serie 4 totalmente nuevo, ruedas de 29", plataforma de suspensión MultiTrac LT de 160mm de recorrido, almacenamiento integrado en el tubo inferior, juego de dirección ajustable y longitud CS/altura BB, guiado interno completo de cables, freno de disco Post Mount montado en la vaina, eje pasante Boost de 148x12mm, BB roscado de 73mm con pestañas ISCG05
- Suspensión Delantera: RockShox Zeb Ultimate, 170mm de recorrido, 29", 110x15mm Maxle Stealth, 44mm Offset
- Suspensión Trasera: RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Hardware inferior, Custom Tune, Tasas de muelle S/M: 350lbs, L/XL: 400lbs
- Cambio Trasero: SRAM GX Eagle Lunar 12-Velocidades
- Palanca de Cambio: SRAM GX Eagle Lunar MMX Mount
- Plato de Cambio: SRAM GX Eagle, 32T, 55MM CL, 170MM Longitud
- Motor: SRAM DUB MTB 73
- Cadena: SRAM NX Eagle
- Cassette: SRAM GX 1275 Tipo T 10-52T
- Frenos Delanteros: SRAM DB8 Disco Hidráulico 4-Pistones, Rotor HSC 200mm
- Frenos Trasero: Disco hidráulico SRAM DB8 de 4 pistones, rotor HSC 200mm
- Manetas: SRAM DB8 Hidráulico
- Llantas: Marin, aleación de doble pared, 29mm interior, junta con manguito, específica para disco, 32H, compatible Tubeless
- Maza Trasera: Formula, DCL-3482, 148x12, 4 rodamientos sellados, disco de 6 tornillos, XD Driver, 32H
- Maza delantera: Formula, DC-711, 110x15mm, Disco 6 tornillos, 32H
- Rayos: 14g Acero Inoxidable Negro
- Neumáticos: Maxxis Assegai MAXX GRIP, Delantera 29x2.5 EXO+, Trasera 27.5x2.5" DoubleDown, Compatible Tubeless
- Manillar: Marin Trail, abrazadera de 35mm, manillar de aleación 7000, 800mm de longitud, 20mm de elevación, 5 grados arriba, 8 grados atrás
- Potencia: Marin CNC, 35mm Longitud, 35mm Bar Bore
- Grips: Marin Grizzly Lock-On
- Sillín: FSA Custom, diseño HTA ajustable
- Tija de Sillín: TranzX, YSP39 1x Remoto, Diámetro Tija 34.9, Recorrido S = 150mm, M/L = 170mm, XL = 200mm
- Sillín: Marin Speed Concept
- Extras: Eje pasante atornillado de 12mm, 174mm de longitud, paso de rosca 1.0, 16.5mm, cabeza cónica
- Extras: Bolsa para tubo inferior
La nueva serie Alpine Trail es nuestra línea de bicicletas de enduro más audaz y capaz hasta la fecha, construida sobre nuestros cuadros más avanzados y ajustables hasta la fecha.
Los cuadros MultiTrac 2 LT de aluminio Serie 4 cuentan con ruedas mixtas de 29”/27,5”, recorrido delantero de 170 mm y trasero de 160 mm, y lo máximo en capacidad de ajuste. Los ciclistas pueden modificar el ángulo del tubo de dirección y la longitud del pedalier/vaina, así como utilizar ruedas traseras de 29” si lo desean. El almacenamiento del tubo diagonal “Bear Box” incluye una bolsa de nailon con cremallera para guardar los elementos esenciales del sendero y una tija de sillín de 34,9 mm aumenta la resistencia y es compatible con las últimas tijas telescópicas.
"XR" = "Xtra Rad" aquí en Marin, y al igual que los modelos XR que precedieron al nuevo Alpine Trail, creamos un modelo para el ciclista más exigente. Centramos nuestros esfuerzos en construir una bicicleta con suspensión RockShox Ultimate de alto rendimiento, una transmisión SRAM GX Eagle Lunar de 12 velocidades y frenos DB8 de 4 pistones: todo equipo que ayuda al ciclista a subir de nivel, pero sin gastar mucho dinero. No olvides la goma Maxxis y nuestra potencia patentada de 35 mm mecanizada por CNC y la barra Trail Bar a juego.
Tecnología
MULTITRAC 2 LT
MultiTrac 2 LT debuts on the aluminum-framed Alpine Trail alloy models. MultiTrac 2 LT shifts from seatstay pivots to chainstay pivots, ensuring that the suspension performance matches our design goals, which are not achievable using pivots located on the seatstay once travel exceeds 150mm. With MultiTrac 2 LT, the benefits of relocating the rear pivot points from the seatstay to the chainstay become apparent, as it reduces anti-rise, allowing for better chassis control while braking, more mid-stroke support, and better feel at bottom out.
ADJUSTABLE GEOMETRY
With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.
Bear Box Downtube Storage
The all-new Alpine Trail aluminum models now feature our Bear Box integrated downtube storage, complete with a custom nylon bag with a weather-sealed zipper. The hatch door is secure and double-sealed, with bottle bosses. Keep your riding essentials safe and protected from the elements during your big ride.
ADJUSTABLE HEADTUBE ANGLE
Using our proprietary headset cups and inserts, the headtube angle on Alpine Trail aluminum models can be adjusted to +0.75° or -0.75° from the standard 63° position, giving the rider three options.
PROTECTION
Chainstay and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes, and integrated downtube guards helps deflect errant rocks, logs, or anything else riders may encounter on the trail.
Additionally, all aluminum frame models include a gasket around the cable exit hole reduces noise and prevents the brake hose and derailleur cable from marring the frame, and a mudflap positioned over the lower suspension pivot keeps spray and muck off the bearings. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted. They will be available as a service part for when riders make changes to their components.
ONE PIECE ROCKER LINK
The Alpine Trail Carbon utilizes a stout one piece rocker link for maximum frame rigidity and suspension performance, while also allowing for bridgeless seatstays for enhanced clearance.
DOWNTUBE PROTECTION
Alpine Trail Carbon models have an integrated and replaceable downtube protector to fend off inevitable log/rock/whatever strikes that may occur when out on a rowdy ride.
CHAINSTAY PROTECTION
The chainstays on Alpine Trail Carbon models feature an aggressive chainstay protector that not only protect your frame from chain slap, but also quiet the ride.
